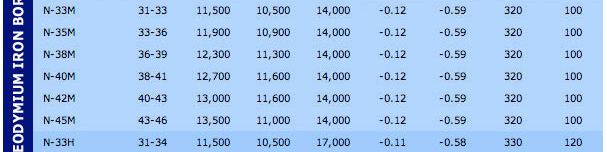

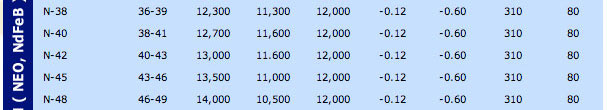

Alliance NdFeB Grades | Remanent Induction | Coercive Force | Intrinsic Coercive Force | Maximum Energy Product | Reversible Temperature Coefficients | Continuous Working Temp. | Density | ||||
Br (Gauss) | Hc (Oe) | Hci (Oe) | (BH)max (MGOe) | α Br | ß Hcj | Tw (°C) | g/cm3 | ||||
Min | Max | Min | Min | Min | Max | %/°C | %/°C | Max | Min | ||
N52 | 14,500 | 14,800 | 10,500 | 12,000 | 50 | 52 | -0.12 | -0.65 | 80 | 7.5 | |
N50 | 14,100 | 14,500 | 10,500 | 12,000 | 48 | 50 | -0.12 | -0.65 | 80 | 7.5 | |
N48 | 13,700 | 14,100 | 10,500 | 12,000 | 45 | 48 | -0.12 | -0.65 | 80 | 7.5 | |
N45 | 13,300 | 13,700 | 10,500 | 12,000 | 42 | 45 | -0.12 | -0.65 | 80 | 7.5 | |
N42 | 12,900 | 13,300 | 10,500 | 12,000 | 40 | 42 | -0.12 | -0.65 | 80 | 7.5 | |
N40 | 12,600 | 12,900 | 10,800 | 12,000 | 38 | 40 | -0.12 | -0.65 | 80 | 7.5 | |
N38 | 12,200 | 12,600 | 10,800 | 12,000 | 35 | 38 | -0.12 | -0.65 | 80 | 7.5 | |
N35 | 11,700 | 12,200 | 10,800 | 12,000 | 33 | 35 | -0.12 | -0.65 | 80 | 7.4 | |
N33 | 11,400 | 11,700 | 10,800 | 12,000 | 30 | 33 | -0.12 | -0.65 | 80 | 7.4 | |
N30 | 10,800 | 11,400 | 10,800 | 12,000 | 28 | 30 | -0.12 | -0.65 | 80 | 7.4 | |
N52M | 14,500 | 14,800 | 12,800 | 14,000 | 50 | 52 | -0.12 | -0.65 | 100 | 7.5 | |
N50M | 14,100 | 14,500 | 12,700 | 14,000 | 48 | 50 | -0.12 | -0.65 | 100 | 7.5 | |
N48M | 13,700 | 14,100 | 12,500 | 14,000 | 45 | 48 | -0.12 | -0.65 | 100 | 7.5 | |
N45M | 13,300 | 13,700 | 12,200 | 14,000 | 42 | 45 | -0.12 | -0.65 | 100 | 7.5 | |
N42M | 12,900 | 13,300 | 10,500 | 14,000 | 40 | 42 | -0.12 | -0.65 | 100 | 7.5 | |
N40M | 12,600 | 12,900 | 11,800 | 14,000 | 38 | 40 | -0.12 | -0.65 | 100 | 7.5 | |
N38M | 12,200 | 12,600 | 11,500 | 14,000 | 35 | 38 | -0.12 | -0.65 | 100 | 7.5 | |
N35M | 11,700 | 12,200 | 11,000 | 14,000 | 33 | 35 | -0.12 | -0.65 | 100 | 7.5 | |
N33M | 11,400 | 11,700 | 10,500 | 14,000 | 30 | 33 | -0.12 | -0.65 | 100 | 7.5 | |
N30M | 10,800 | 11,400 | 10,000 | 14,000 | 28 | 30 | -0.12 | -0.65 | 100 | 7.5 | |
N50H | 14,100 | 14,500 | 13,000 | 17,000 | 48 | 50 | -0.11 | -0.58 | 120 | 7.5 | |
N48H | 13,700 | 14,100 | 12,700 | 17,000 | 45 | 48 | -0.11 | -0.58 | 120 | 7.5 | |
N45H | 13,300 | 13,700 | 12,200 | 17,000 | 42 | 45 | -0.11 | -0.58 | 120 | 7.5 | |
N42H | 12,900 | 13,300 | 12,000 | 17,000 | 40 | 42 | -0.11 | -0.58 | 120 | 7.5 | |
N40H | 12,600 | 12,900 | 11,800 | 17,000 | 38 | 40 | -0.11 | -0.62 | 120 | 7.5 | |
H38H | 12,200 | 12,600 | 11,500 | 17,000 | 35 | 38 | -0.11 | -0.62 | 120 | 7.5 | |
N35H | 11,700 | 12,200 | 11,000 | 17,000 | 33 | 35 | -0.11 | -0.62 | 120 | 7.5 | |
N33H | 11,400 | 11,700 | 10,500 | 17,000 | 30 | 33 | -0.11 | -0.62 | 120 | 7.5 | |
N30H | 10,800 | 11,400 | 10,000 | 17,000 | 28 | 30 | -0.11 | -0.62 | 120 | 7.5 | |
N48SH | 13,700 | 14,100 | 12,700 | 20,000 | 46 | 48 | -0.11 | -0.60 | 150 | 7.5 | |
N46SH | 13,500 | 13,700 | 12,500 | 20,000 | 44 | 46 | -0.11 | -0.60 | 150 | 7.5 | |
N44SH | 13,200 | 13,500 | 12,300 | 20,000 | 42 | 44 | -0.11 | -0.60 | 150 | 7.5 | |
N42SH | 12,900 | 13,200 | 12,100 | 20,000 | 40 | 42 | -0.11 | -0.60 | 150 | 7.5 | |
N40SH | 12,600 | 12,900 | 11,700 | 20,000 | 38 | 40 | -0.11 | -0.60 | 150 | 7.5 | |
N38SH | 12,200 | 12,600 | 11,300 | 20,000 | 36 | 38 | -0.11 | -0.60 | 150 | 7.5 | |
N35SH | 11,700 | 12,200 | 11,000 | 20,000 | 33 | 36 | -0.11 | -0.60 | 150 | 7.5 | |
N33SH | 11,400 | 11,700 | 10,700 | 20,000 | 31 | 33 | -0.11 | -0.60 | 150 | 7.5 | |
N30SH | 10,800 | 11,400 | 10,200 | 20,000 | 28 | 31 | -0.11 | -0.60 | 150 | 7.5 | |
N48UH | 13,700 | 14,100 | 12,700 | 25,000 | 46 | 48 | -0.10 | -0.55 | 180 | 7.5 | |
N46UH | 13,500 | 13,700 | 12,500 | 25,000 | 44 | 46 | -0.10 | -0.55 | 180 | 7.5 | |
N44UH | 13,300 | 13,500 | 12,300 | 25,000 | 42 | 44 | -0.10 | -0.55 | 180 | 7.5 | |
N42UH | 10,900 | 13,300 | 12,200 | 25,000 | 40 | 42 | -0.10 | -0.50 | 180 | 7.5 | |
N40UH | 12,600 | 13,200 | 11,800 | 25,000 | 38 | 41 | -0.10 | -0.55 | 180 | 7.5 | |
N38UH | 12,200 | 12,600 | 11,500 | 25,000 | 36 | 38 | -0.10 | -0.55 | 180 | 7.5 | |
N35UH | 11,700 | 12,200 | 11,000 | 25,000 | 33 | 36 | -0.10 | -0.55 | 180 | 7.5 | |
N33UH | 11,400 | 11,700 | 10,700 | 25,000 | 31 | 33 | -0.10 | -0.55 | 180 | 7.5 | |
N30UH | 10,800 | 11,400 | 10,200 | 25,000 | 28 | 31 | -0.10 | -0.50 | 180 | 7.5 | |
N42EH | 12,900 | 13,300 | 12,200 | 30,000 | 40 | 42 | -0.09 | -0.50 | 200 | 7.5 | |
N40EH | 12,600 | 12,900 | 11,800 | 30,000 | 38 | 40 | -0.09 | -0.50 | 200 | 7.5 | |
N38EH | 12,200 | 12,700 | 11,400 | 30,000 | 36 | 40 | -0.09 | -0.50 | 200 | 7.5 | |
N35EH | 11,700 | 12,500 | 11,000 | 30,000 | 33 | 37 | -0.09 | -0.50 | 200 | 7.5 | |
N33EH | 11,400 | 11,700 | 10,700 | 30,000 | 31 | 33 | -0.09 | -0.50 | 200 | 7.5 | |
N30EH | 10,800 | 11,400 | 10,200 | 30,000 | 28 | 31 | -0.09 | -0.50 | 200 | 7.5 | |
N38AH | 12,200 | 12,600 | 11,600 | 35,000 | 35 | 38 | -0.09 | -0.44 | 220 | 7.5 | |
