BCN - Bonded Compression Neo
BCNF - Bonded Neo Ferrite Hybrid
BIF - Bonded Injection Ferrite
BIN - Bonded Injection Neo
BIS - Bonded Injection SmCo
N - Sintered NdFeB
C - Sintered SrFe2O3 Ferrites
S - Sintered SmCo5, Sm2Co17
A - Cast and Sintered AlNiCo

Compression Bonded Neo

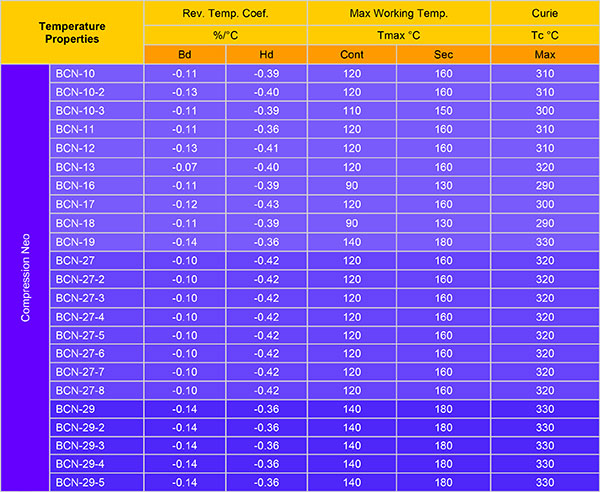

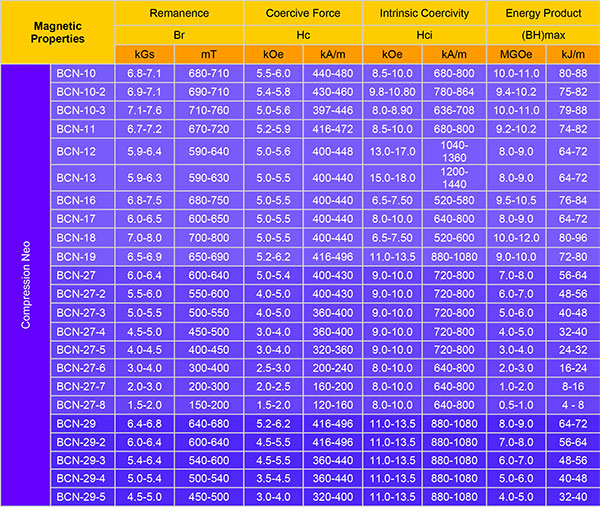

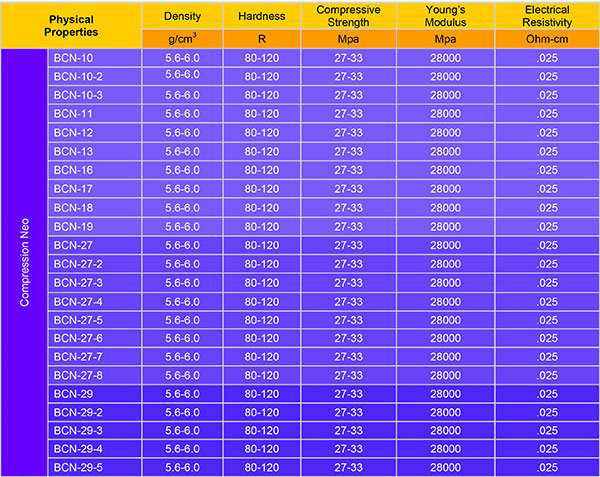

Neodymium Iron Boron Compression Bonded Magnets are made by utilizing the technique of compressing an epoxy coated NdFeB magnet powder into a final shape and then heat treating it. The result is a high density material which produces a higher magnetic output than by injection molding. Although compression molding provides greater flexibility in geometry shape and size, they do not provide the range of complex geometries which can be achieved by injection molding. The following tables list common grades, however custom grades can be made depending on customers’ requirements.
